Features

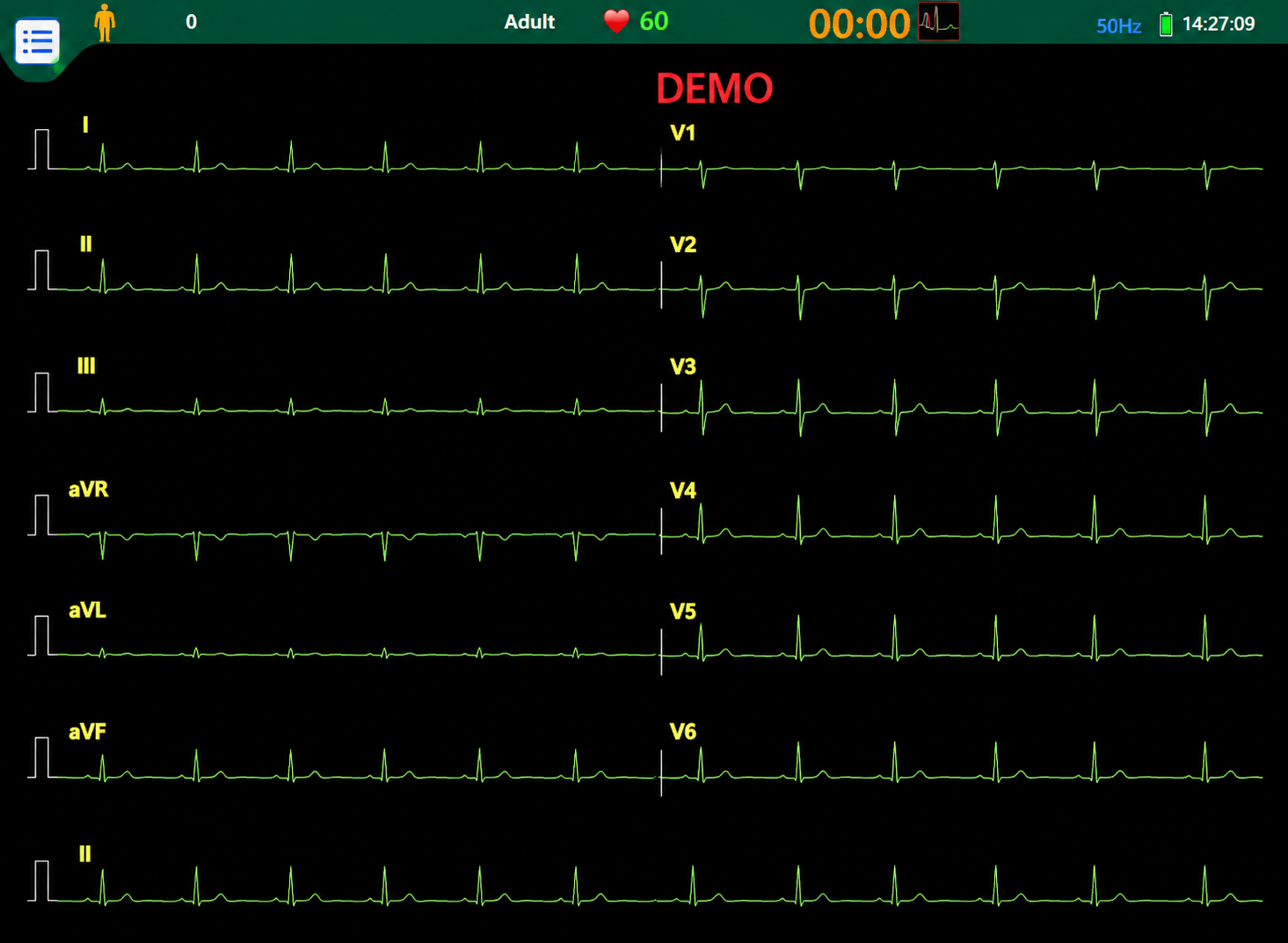

Touchscreen

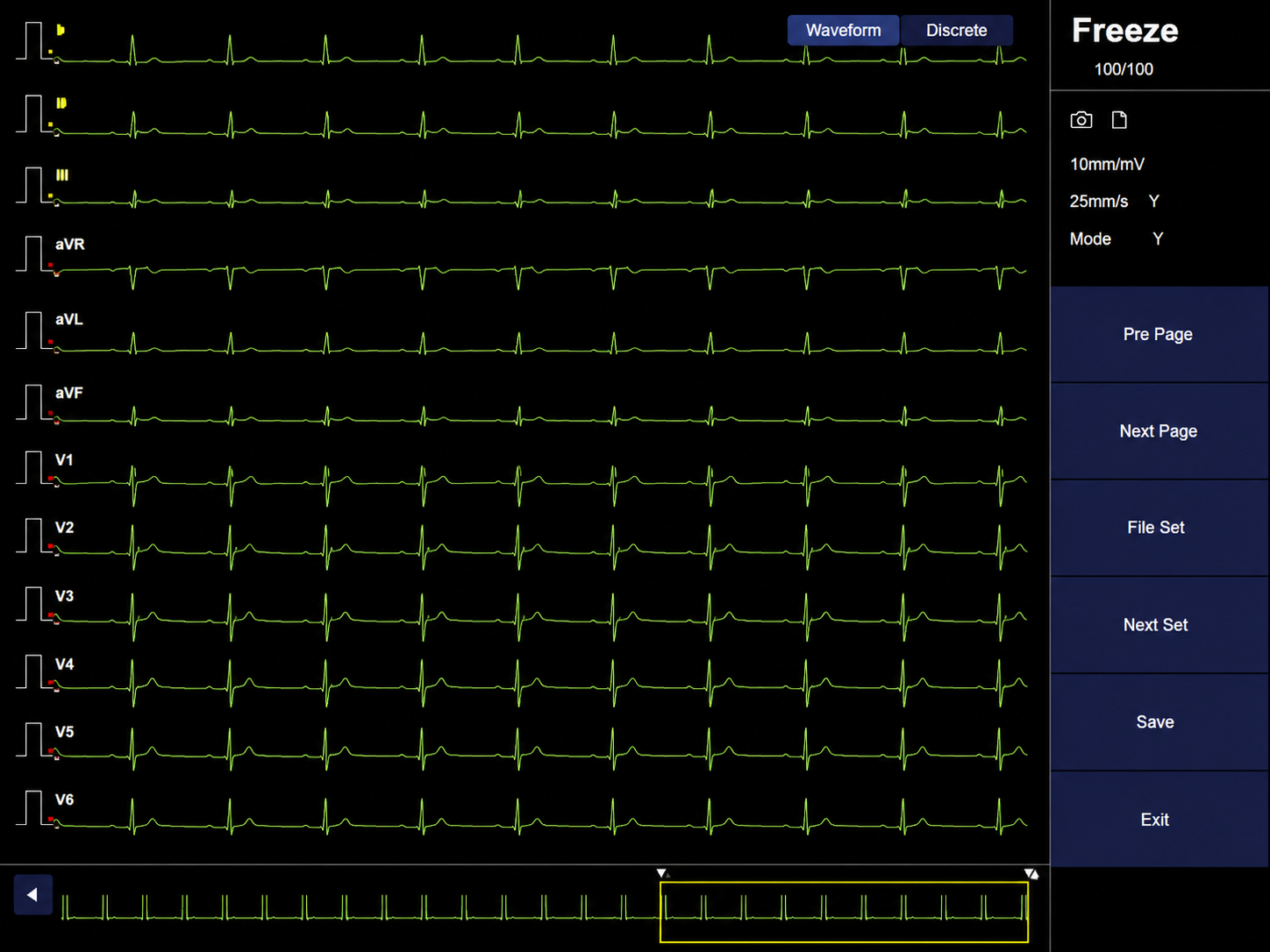

Enplay record

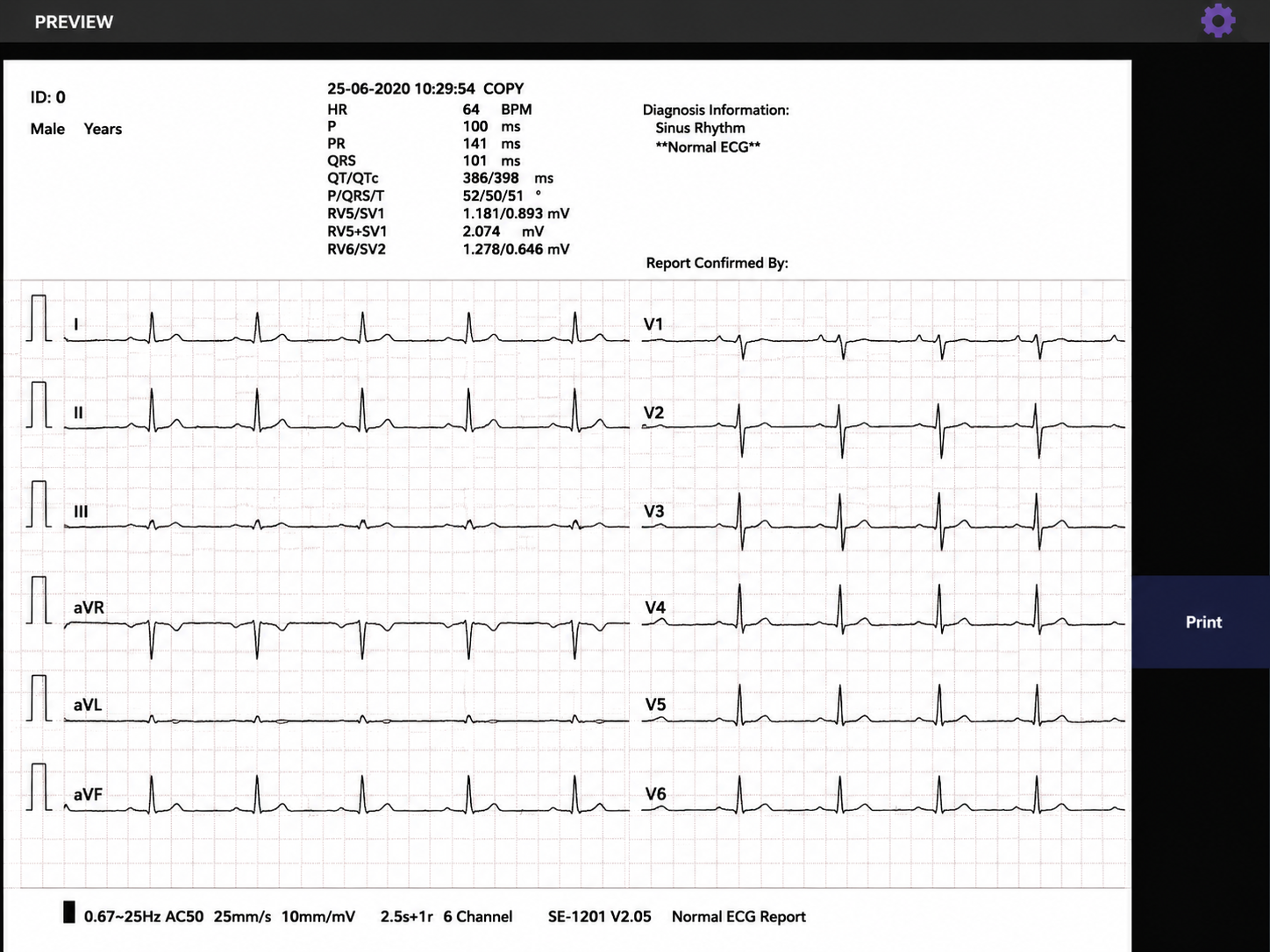

Report Preview

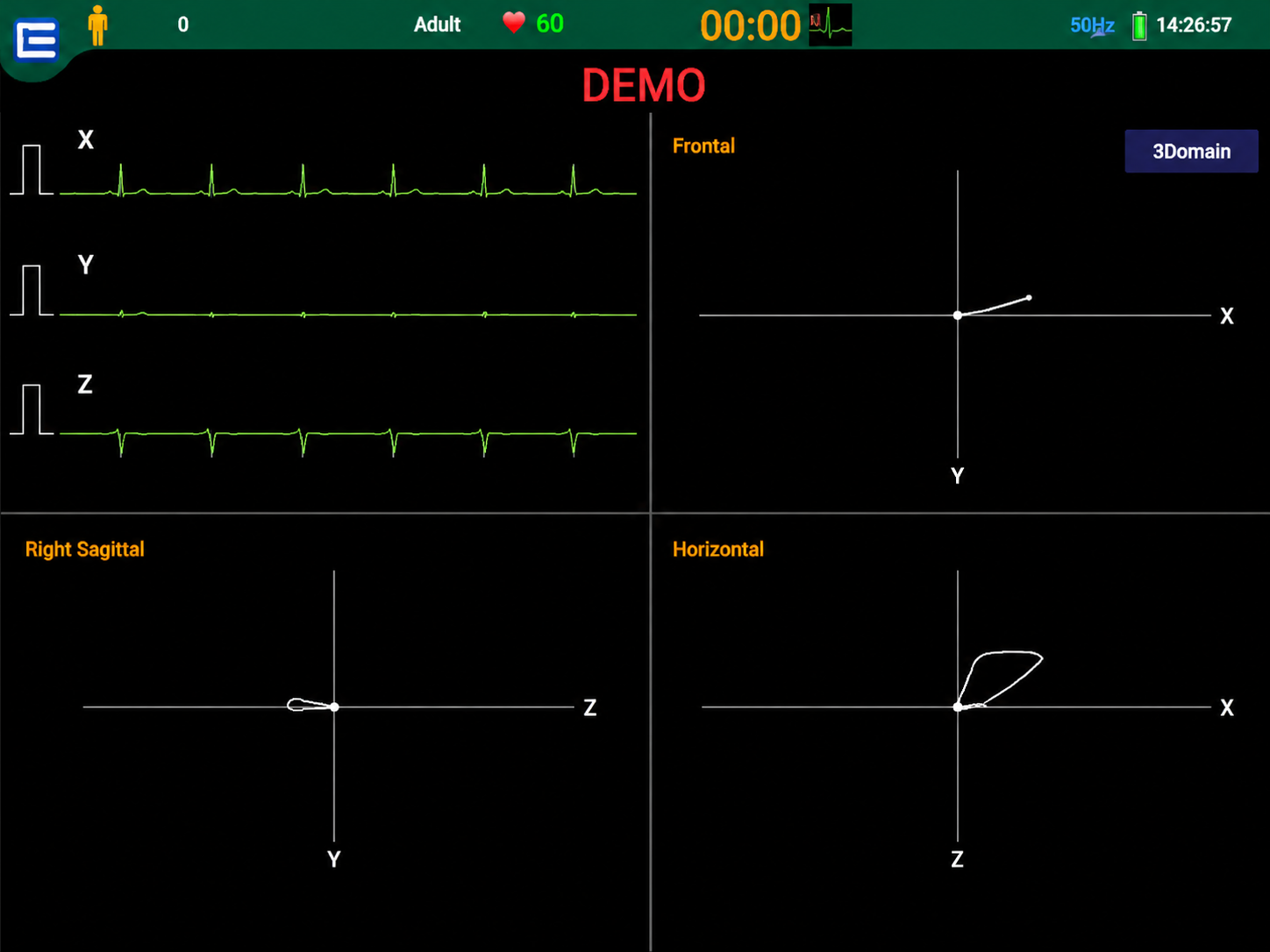

VCG (option)

Options

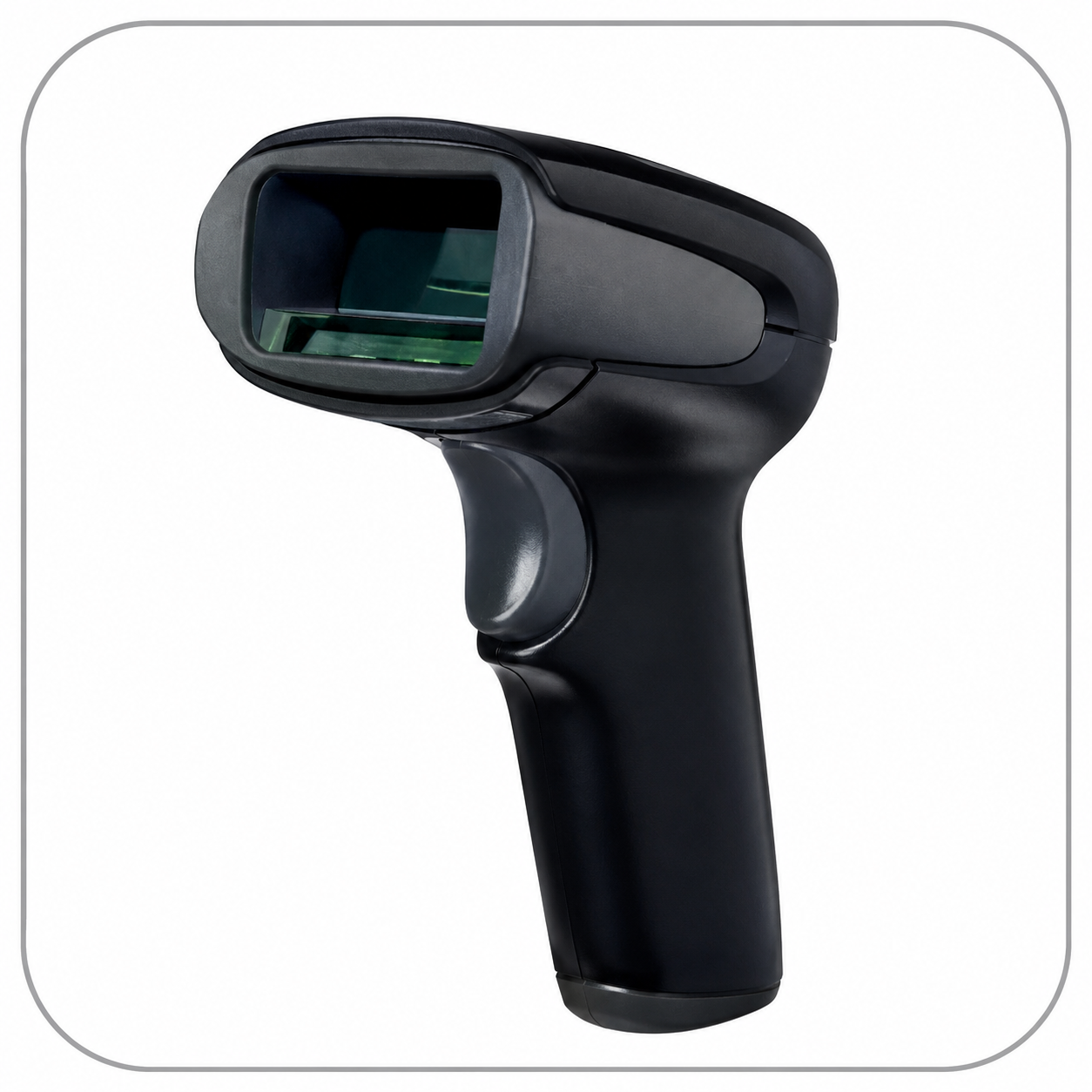

Support barcode & QR code

Wi-Fi

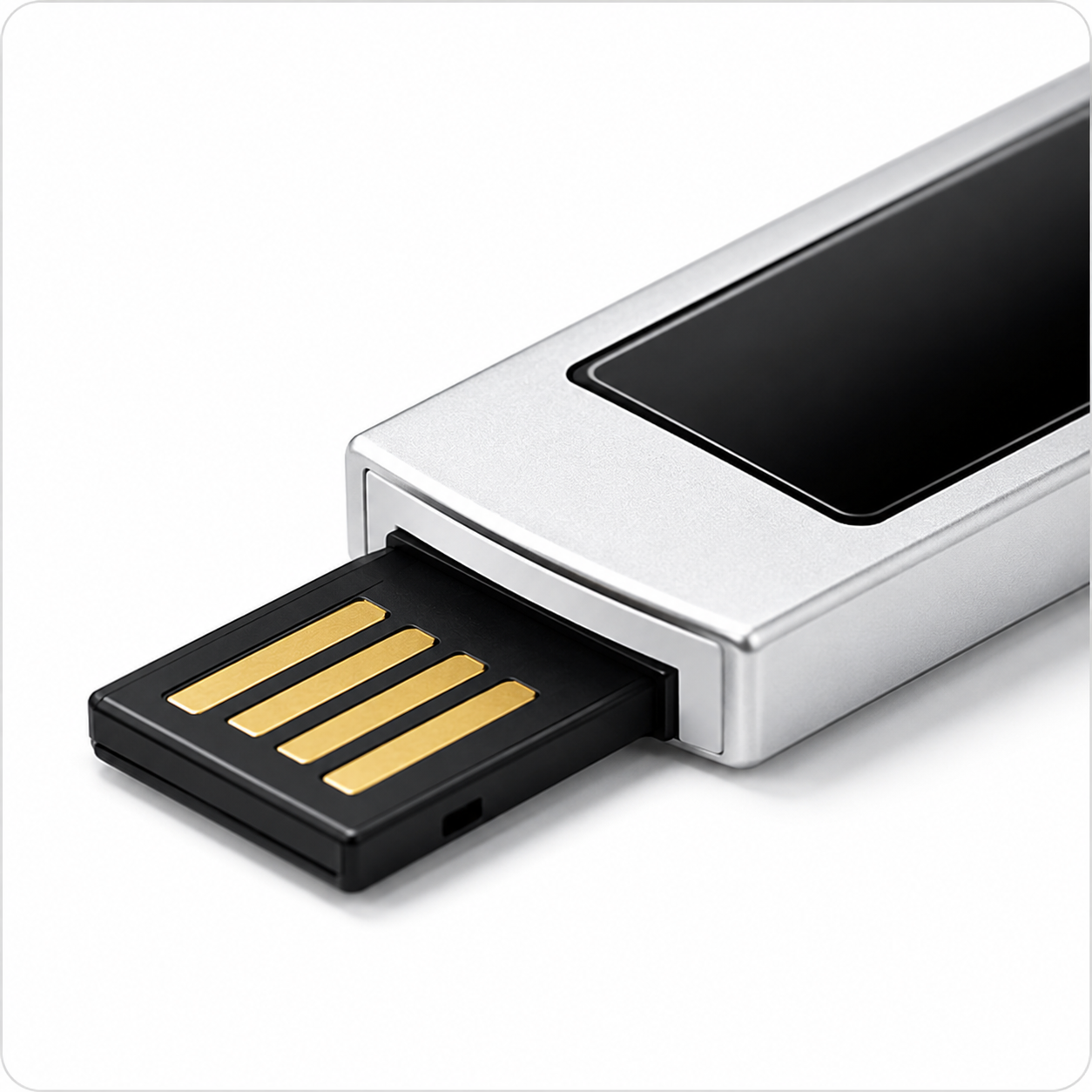

Support USB disk for storing, importing and exporting data.

Might-net

Technical Specifications

Display
Resolution 1024 × 768
Type 9.7 inch TFT screen
Operation Touchscreen
Requisition
Leads 9/12 leads
Sampling Frequency 16000HZ
A/D Resolution 24 bits
HR Range 30-300 BPM
Accuracy 1 BPM
Time Constant ≥3.2s
Input Circuit Current ≤0.01µA
Input Voltage Range ≤±5mVp-p
Calibration Voltage 1mV ±2%
DC Offset Voltage ±600mV
Input Impedance ≥50MΩ (10HZ)
CMRR ≥120dB
Frequency Response 0.01-300Hz (+0.4dB / -3.0dB)
Noise ≤12.5µV (P-P)
AC Filter 50Hz / 60Hz / Off
DFT Filter 0.01Hz / 0.05Hz / 0.32Hz / 0.67Hz
EMG Filter / Low-pass 25Hz / 35Hz / 45Hz / 75Hz / 100Hz / 150Hz / 270Hz / 300Hz
Pacemaker Detection Amplitude: ±750µV ~ ±700mV
Width: 50µs ~ 2.0ms
Sampling Frequency: 16000HZ
Power
AC Frequency 50/60Hz
Power Supply AC input with external power adapter 100V–240V
Battery Rechargeable Lithium-ion battery, 4400mAh
Capacity More than 3 hours continuous operation or 400 ECGs printing
Printer
Gain 2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV, 10/5mm/mV, AGC ±5%
Speed 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s (±3%)
Recorder Thermal dot-matrix recorder
Printing Density 8 dots/mm (amplitude axis)
200 dpi

40 dots/mm (time axis)
1000 dpi @25mm/s
Recorder Paper Folded thermal paper 210 × 140mm × 20m
Physical
Dimension 369 × 260 × 83mm
Weight 3.9 KGS
Safety
Defibrillation-proof Recovery Time <5s
Patient Leakage Current NC: ≤10µA (AC) / ≤10µA (DC)
SFC: ≤50µA (AC) / ≤50µA (DC)
Patient Auxiliary Current NC: ≤10µA (AC) / ≤10µA (DC)
